I have been told that 90 degree routing is not allowed due to the possibility of acid traps i think. These junctions could be if a smaller than normal gap that exists from the trace to the via in a high density or multi layered pcb or if a tiny pocket that forms during the etching process. This mistake is that the two traces meet cross each other at acute angles i e less than 90 o.

led panel led pcb board largo mar pcb rentals lg led tv pcb board price lg washing machine pcb board buy online joni beach rentals pcb how to mount pcb in project box lobster fest pcb hunts oyster bar pcb menu

What Is An Acid Trap Electrical Engineering Stack Exchange

Acid Trap Pcb Via Ultimate Guide On All The Things You Need To Know

Common Pcb Design Mistakes

Acid Traps How To Avoid Them Was Something New And Old Mailing List Archive Kicad Developers Team In Launchpad

Commonly Seen Pcb Design Issues Pcbcart

Causes Of Acid Traps In Printed Circuit Boards

Acid trap pcb when routing track around a corner.

Pcb acid trap. 50 thou thousant of an. An acid trap usually occurs when traces meet at sharp angles and etching solution becomes trapped at the junctions. Acid traps acid trap is the common term for acute angles in a circuit. Here s an easy acid trap to miss from the joining of two traces.

Acid traps acute angle. Idealy it should be 45 degrees mitered. Acid traps can cause traces to become disconnected from their assigned nets and leave these traces open circuited. Designers always look to avoid any chances that might lead to acid trap holes.

This trap is commonly referred to as an acid trap. The acid trap holes can develop on both sides of the pcb if you are dealing with double layered or multi layered pcbs. Do yourself a favor and thoroughly scan all of the trace angles on your board after you finish your routing. I have also been told that 90 degree routing is ok for large tracks e g.

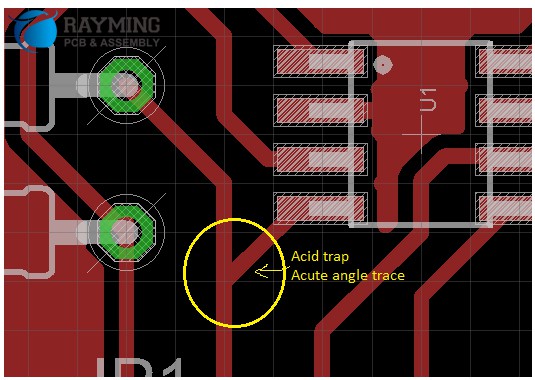

Image source but time and time again pcb designers forget one simple thing you can still make acute angle acid traps from the joining of two traces. There s an old rule of thumb circling around the pcb designer communities avoid acute angles 90 in pcb design lest you incur the wrath of the acid trap while that may have made sense over ten years ago when thermally activated etchants were widely used in pcb fabrication today s manufacturing methods have greatly improved. During the pcb design process the design engineer can unknowingly makes a mistake. They are referred to this way because these acute angles trap acid during the pcb etching process allowing the acid to build up in the nook of the angle.
